Wednesday, June 17, 2015

note for jasper




1. To install a new font in jasperreport , install that in ireport and Export to jar file
   and then replace the jar file in your jasper project. to install a font in ireport ,
   go to tools -> options -> fonts and click on install fonts. follow the steps and
   you will now install new fonts in ireport. please dont forget to check embed this font in pdf.

2. Now to export the fonts , go to tools -> options -> fonts and then from the list of availble fonts
   please select the fonts you needed and then click Export as extension . which wil export the fonts as jar file.
   now replace the jar file in jasperreport library .

3. You can also add the created jar in your project lib directory.

Wednesday, June 10, 2015

From project jasper report click a font problem solution way -

error page when project run :

Now describe this error :
At first show the sample report ( this image show as design mode ) -

5 Arrow meaning from above image
1/ Design
2/ XML
3/ Preview
4/ Sql  query write
5/ Compile

n.b:
report_aboutFont.jpg ::


For font error( http 500 ) solve I have to make jar using this font in jasper report By following way -

Tuesday, June 9, 2015


For database connection :
install iReport software then open it and click the Arrow icon :
step - 1 :

step - 2 :
icon click _a _newWindow_show.jpg

 step - 3 :
dbJDBC _connectionClick_a _newWindow_show.jpg (Blue color)
step - 4 :
1/ Fill up name field according to project database name (sales_pharma)
2/ Fill up JDBC Driver from combo according to project database type( as orcl database )
Note : Here top line( oracle.jdbc.driver.OracleDriver ) of blue color selection part font  is black because ojdbc14.jar is ok.( describe under )
localhost will be 174.141.233.18 and also fill up user name( sales_pharma ) and password( sales_pharma ) field according to project database connection :
so, finally screen fill up and click test button for sure then save button click  :

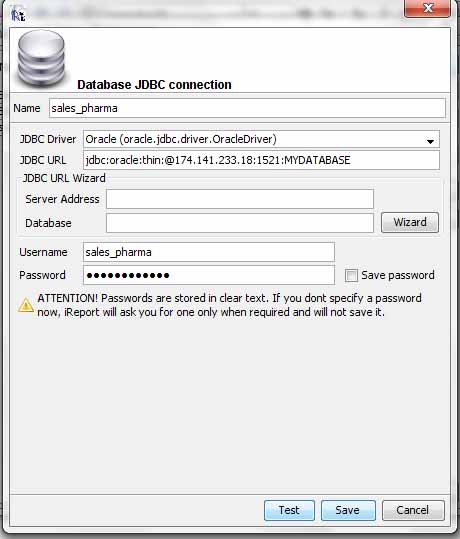

Finally screen short look like( red portion follow For fillUp form) ::

................................................................................................................................
Another portion db connection jar include way :( ojdbc14.jar is ok.( describe under ) )
dbConnectivity_jar_addSystem.jpg :
at first keep the jar ( ojdbc14.jar  ) on desktop [ according to db connection jar ]
from upper menu :: Tools -> options click Then see the red portion window.Now do click add jar button in the red portion .

................................................................................................................................
font include/add way :
at first keep the jar ( Maiandra GD.ttf  ) on desktop [ from controm panel -> font folder ]
from upper menu :: Tools -> options click Then see the red portion window.Now do click Install Font button in the red portion .

step - 1 :

step -2 :
Now browse button click for select font on the desktop and Click Next button Then see the following window -
Now Next next next -> finish button click Then see the below screen -
Now Keep this jar in project library folder .







jasper instruction(3.7.6) from drug project


kakka  kak akkka

Before jasper report call only insert value and return page show :
    public void saveCustomerDataInfo(){

        System.out.println("select call data:");
        UserBlockDao userBlockDao = new UserBlockDao();
        String stopDate = "";
        String fromDate = "";
        if(status=="S"){
            stopDate = statusWiseDate;
        } else {
            fromDate = statusWiseDate;
        }
      userBlockDao.userBlogSubmit(areaExecId,regById,name,userId,userPass,areaId,stopDate,fromDate,status,previousId,previousName,instructionBy,instructionName,designation,dateWithTime,remarks);

             return "saveCustomerDataInfo";

    }

After jasper report call only insert value and Not return page show :
    public void saveCustomerDataInfo(){

        System.out.println("select call data:");
        UserBlockDao userBlockDao = new UserBlockDao();
        String stopDate = "";
        String fromDate = "";
        if(status=="S"){
            stopDate = statusWiseDate;
        } else {
            fromDate = statusWiseDate;
        }
        int processId = userBlockDao.userBlogSubmit(areaExecId,regById,name,userId,userPass,areaId,stopDate,fromDate,status,previousId,previousName,instructionBy,instructionName,designation,dateWithTime,remarks);

        try {
                genInvoicePDF("processId", String.valueOf(processId),"userStatus",status);
            } catch (JRException e) {
                e.printStackTrace();
            } catch (ServletException e) {
                e.printStackTrace();
            } catch (IOException e) {
                e.printStackTrace();
            }


        //return "saveCustomerDataInfo";

    }

///////////////////////////////////
query ( int use  instead of void and return[return processId;] use instead of not return) :
 public int insertCustomerInforma(String areaExecId,String regById,String name,String userId,String userPass,String areaId,String stopDate,String fromDate,String status,String previousId,String previousName,String instructionBy,String instructionName,String designation,String dateWithTime,String remarks){

        System.out.println("kaniz");
        boolean fg = true;
        con = dbc.connectDB();

         if (con == null) {
             fg = false;
         }

    if (fg) {
     try {

         int processId = 0;


            st = con.createStatement();
            String unikProcessId = "select Nvl(max(process_id),0)+1 processId from ms_system_user_process";
            rs = st.executeQuery(unikProcessId);
            while(rs.next()) {
                 processId = rs.getInt("processId");
            }

             st = con.createStatement();
             query = "Insert into MS_SYSTEM_USER_PROCESS(PROCESS_ID, AREA_EXEC_ID, REQ_BY_ID, EXECUTIVE_NAME, USER_ID,USER_PASS, AREA_ID, START_FROM_DT, STOP_FROM_DT,"
                           + "USER_NEW_REPLACEMENT_STATUS,PRE_REQ_BY_ID, PRE_EXECUTIVE_NAME, INSTRUCTION_BY, "
                           + "INSTRUCTION_BY_NAME, DESIGNATION,INSTRUCTION_DATE_TIME, "
                           + "REMARKS)Values("+processId+", '"+areaExecId+"', '"+regById+"', '"+name+"', '"+userId+"', '"+userPass+"', '"+areaId+"', TO_DATE('"+fromDate+"', 'MM/DD/YYYY HH24:MI:SS'), TO_DATE('"+stopDate+"', 'MM/DD/YYYY HH24:MI:SS'), '"+status+"', '"+previousId+"', '"+previousName+"', '"+instructionBy+"', '"+instructionName+"', '"+designation+"', TO_DATE('"+dateWithTime+"', 'MM/DD/YYYY HH24:MI:SS'), '"+remarks+"')";
                    System.out.println("Query" + query);
                    st.executeUpdate(query);

    } catch (SQLException sq) {
      sq.printStackTrace();
    } finally {
      try {
          if (rs != null) {
              rs.close();
          }

          con.close();
      } catch (SQLException ex) {
          ex.printStackTrace();
      }
    }
    }


   return processId;

           // return "getBankInfoPageReturn";  //  page return not query return.Remember insert query notreturn;.Only select query return List.
   }

/////////////////////////////////////////////////////////////////////

public void genInvoicePDF(String key, String processId,String key2, String status) throws JRException, ServletException, IOException {
            Map<String, String> parameters = new HashMap<String, String>();
            parameters.put(key, processId);
            parameters.put(key2, status);
            AllReports allReports = new AllReports();
            allReports.showReport(processId,parameters,"stopUser.jasper", "pdf");
    }


AllReports.java:

package com.drug.billing.userblock.action.utility;

import java.io.ByteArrayOutputStream;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.OutputStream;
import java.sql.Connection;
import java.util.HashMap;
import java.util.Map;

import javax.servlet.ServletContext;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletResponse;

import net.sf.jasperreports.engine.JRException;
import net.sf.jasperreports.engine.JRExporter;
import net.sf.jasperreports.engine.JRExporterParameter;
import net.sf.jasperreports.engine.JasperExportManager;
import net.sf.jasperreports.engine.JasperFillManager;
import net.sf.jasperreports.engine.JasperPrint;
import net.sf.jasperreports.engine.JasperPrintManager;
import net.sf.jasperreports.engine.export.JRCsvExporter;
import net.sf.jasperreports.engine.export.JRHtmlExporter;
import net.sf.jasperreports.engine.export.JRPdfExporter;
import net.sf.jasperreports.engine.export.JRRtfExporter;
import net.sf.jasperreports.engine.export.JRXlsExporter;
import net.sf.jasperreports.engine.export.ooxml.JRDocxExporter;

import org.apache.log4j.Logger;
import org.apache.struts2.ServletActionContext;

import com.drug.billing.userblock.database.DatabaseConnection;


public class AllReports {
    private DatabaseConnection dbc = new DatabaseConnection();

    public  void printReport(String accID, String filename){
             Connection con= dbc.connectDB();
            Map<String, String> parameters = new HashMap<String, String>();
            parameters.put("regNo", accID);
            try {
                ServletContext context = ServletActionContext.getServletContext();
                String path = context.getRealPath("/");
                String printFileName = JasperFillManager.fillReportToFile(path + "/Jasper"+ "/" + filename,parameters,con);
                JasperPrintManager.printReport(printFileName, false);
            } catch (JRException e) {
                e.printStackTrace();
            }
    }


    public  void showReport(String key,Map<String, String> parameters, String filename, String reportType)
            throws JRException, ServletException, IOException {

        Connection connection = null;
        HttpServletResponse response = ServletActionContext.getResponse();
        String outputFileName = "report_" + parameters.get(key);


/*        parameters.put("regNo", accID);*/
        connection = dbc.connectDB();

        ServletContext context = ServletActionContext.getServletContext();
        String path = context.getRealPath("/");// .getContextPath();

        JasperPrint jasperPrint = JasperFillManager.fillReport(path + "/Jasper"+ "/" + filename, parameters, connection);
        System.out.println("Report Created");

        OutputStream ouputStream = response.getOutputStream();

        JRExporter exporter = null;

        if ("pdf".equalsIgnoreCase(reportType)) {

            response.setContentType("application/pdf");
            // If you want show the report in the browser then write
            // âہ“inlineâە¿½
            response.setHeader("Content-disposition", "inline;filename="
                    + outputFileName + "." + reportType);
            // If you want show the report out of the browser as a .pdf format
            // then write âہ“attachmentâە¿½
            // response.setHeader(âہ“Content-dispositionâە¿½,
            // âہ“attachment;filename=âە¿½+outputFileName+âە¿½.âە¿½+reportType);
            exporter = new JRPdfExporter();
            exporter.setParameter(JRExporterParameter.JASPER_PRINT, jasperPrint);
            exporter.setParameter(JRExporterParameter.OUTPUT_STREAM,
                    ouputStream);

        } else if ("rtf".equalsIgnoreCase(reportType)) {

            response.setContentType("application/rtf");
            response.setHeader("Content-disposition", "inline;filename="
                    + outputFileName + "." + reportType);
            exporter = new JRRtfExporter();
            exporter.setParameter(JRExporterParameter.JASPER_PRINT, jasperPrint);
            exporter.setParameter(JRExporterParameter.OUTPUT_STREAM,
                    ouputStream);

        } else if ("html".equalsIgnoreCase(reportType)) {

            exporter = new JRHtmlExporter();
            exporter.setParameter(JRExporterParameter.JASPER_PRINT, jasperPrint);
            exporter.setParameter(JRExporterParameter.OUTPUT_STREAM,
                    ouputStream);

        } else if ("xls".equalsIgnoreCase(reportType)) {

            response.setContentType("application/xls");
            response.setHeader("Content-disposition", "inline;filename="
                    + outputFileName + "." + reportType);
            exporter = new JRXlsExporter();
            exporter.setParameter(JRExporterParameter.JASPER_PRINT, jasperPrint);
            exporter.setParameter(JRExporterParameter.OUTPUT_STREAM,
                    ouputStream);

        } else if ("csv".equalsIgnoreCase(reportType)) {

            response.setContentType("application/xls");
            response.setHeader("Content-disposition", "inline;filename="
                    + outputFileName + "." + reportType);
            exporter = new JRCsvExporter();
            exporter.setParameter(JRExporterParameter.JASPER_PRINT, jasperPrint);
            exporter.setParameter(JRExporterParameter.OUTPUT_STREAM,
                    ouputStream);
        }

        try {
            exporter.exportReport();

        } catch (JRException e) {
            throw new ServletException(e);
        } finally {
            if (ouputStream != null) {
                try {
                    ouputStream.close();
                } catch (IOException ex) {
                }
            }
        }
    }


    public  void showPDFReport( String filename, String reportType)
            throws JRException, ServletException, IOException {
        Connection connection = null;
        HttpServletResponse response = ServletActionContext.getResponse();
        String outputFileName = "PolioceReport";

        Map<String, String> parameters = new HashMap<String, String>();

        connection = dbc.connectDB();

        ServletContext context = ServletActionContext.getServletContext();
        String path = context.getRealPath("/");// .getContextPath();
        System.out.println(path);
        JasperPrint jasperPrint = JasperFillManager.fillReport(path + "/Jasper"+ "/" + filename, parameters, connection);

        OutputStream ouputStream = response.getOutputStream();
        OutputStream out2 = null;
        out2 = new FileOutputStream(new File(path += "Jasper\\"+filename+".docx"));
        ByteArrayOutputStream byteArrayOutputStream2 = new ByteArrayOutputStream();
        try {
            JRExporter exporter = null;

            response.setContentType("application/docx");
            response.setHeader("Content-disposition", "inline;filename="
                    + outputFileName + "." + reportType);
            exporter = new JRDocxExporter();
            exporter.setParameter(JRExporterParameter.JASPER_PRINT, jasperPrint);
            exporter.setParameter(JRExporterParameter.OUTPUT_STREAM,byteArrayOutputStream2);
            exporter.exportReport();
             out2.write(byteArrayOutputStream2.toByteArray());
                out2.flush();
                out2.close();

        } catch(JRException e){
            throw new ServletException(e);
        } finally {
            if (ouputStream != null) {
                try {
                    ouputStream.close();
                } catch (IOException ex) {
                }
            }
        }
    }


    public  void showPDFReport(String accID, String filename, String reportType)
            throws JRException, ServletException, IOException {
        Connection connection = null;
        HttpServletResponse response = ServletActionContext.getResponse();
        String outputFileName = "PolioceReport";

        Map<String, String> parameters = new HashMap<String, String>();

        parameters.put("regNo", accID);
        connection = dbc.connectDB();

        ServletContext context = ServletActionContext.getServletContext();
        String path = context.getRealPath("/");// .getContextPath();
        System.out.println(path);
        JasperPrint jasperPrint = JasperFillManager.fillReport(path + "/Jasper"+ "/" + filename, parameters, connection);

        OutputStream ouputStream = response.getOutputStream();
        OutputStream out2 = null;
        out2 = new FileOutputStream(new File("C:\\Jasper\\"+accID+".docx"));
        ByteArrayOutputStream byteArrayOutputStream2 = new ByteArrayOutputStream();
        try {
            JRExporter exporter = null;

            response.setContentType("application/docx");
            response.setHeader("Content-disposition", "inline;filename="
                    + outputFileName + "." + reportType);
            exporter = new JRDocxExporter();
            exporter.setParameter(JRExporterParameter.JASPER_PRINT, jasperPrint);
            exporter.setParameter(JRExporterParameter.OUTPUT_STREAM,byteArrayOutputStream2);
            exporter.exportReport();
             out2.write(byteArrayOutputStream2.toByteArray());
                out2.flush();
                out2.close();

        } catch(JRException e){
            throw new ServletException(e);
        } finally {
            if (ouputStream != null) {
                try {
                    ouputStream.close();
                } catch (IOException ex) {
                }
            }
        }
    }

    public static void genWordToPDF(String vbsPath, String docPath) {

        try {
            Process process = Runtime.getRuntime().exec("cscript "+vbsPath+" "+docPath);
            process.waitFor();
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch(InterruptedException ex) {
            ex.printStackTrace();
        }

    }

}


Drug or sales pharma project Log in


public String successLogin(){
        int usrname = 0;

          boolean fg = true;
          con = dbc.connectDB();


           if (con == null) {
               fg = false;
           }



           if (fg) {
               try {

                   st = con.createStatement();
               String query = "SELECT  USER_NAME,USER_ID,USER_PASS FROM UB_SYSTEM_USER WHERE USER_ID = '"+userId+"' AND USER_PASS = '"+userPass+"'  AND ACTIVATION_FLAG = 1 ";
                   System.out.println(query);

                   ResultSet  rs = st.executeQuery(query);

                 while (rs.next()) {
                      usrname = rs.getRow();
                  }


               } catch (SQLException sq) {
                    sq.printStackTrace();
                  } finally {
                    try {
                        if (rs != null) {
                            rs.close();
                        }

                        con.close();
                    } catch (SQLException ex) {
                        ex.printStackTrace();
                    }
                  }
                  }





           if (usrname>0) {

               return "successLogin";
           }else{
            addFieldError("logMsg", "Invalid User ID or Password");
               return "notloginhomePage";
           }

    }


jsp page ::
 <div style="color:#FF0000; ">
                                 <s:fielderror>
                                    <s:param value="logMsg"/>
                                 </s:fielderror>

  </div>

java action class :
public class LoadAction extends ActionSupport {
// create method
}

struts2 configure :
<package name="web"  extends="jasperreports-default, struts-default, json-default" namespace="/">
 </package>

Drug Project need validation required


submit by form ::

<form id="confirmCustomerForm" style="margin: 0px;" action="saveCustomerDataInfoLoad.do">

    <div id="body_content" style="float:left; width:1000px; margin-top:9px;">
       <table width="100%" border="0" cellpadding="1" cellspacing="1" >
  <tr>
    <td class="txtAllign">Request By ID  :</td>
    <td colspan="4">
    <span><input name="regById" id="regById" type="text" value="" style="width:80px;" placeholder="id" onblur="showUserValue(this.id)" required /></span>    </td>
    <td>&nbsp;</td>
  </tr>
  <tr>
    <td class="txtAllign">&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td class="txtAllign">&nbsp;</td>
    <td><input name="areaExecId" id="areaExecId" type="hidden" value="" style=""/></td>
    <td>&nbsp;</td>
  </tr>
  <tr>
    <td width="13%" class="txtAllign">Name : </td>
    <td width="23%"><input name="name" id="name" type="text" value="" style="width:200px;" /></td>
    <td width="5%">&nbsp;</td>
    <td width="11%" class="txtAllign">Area name :</td>
    <td width="24%"><input name="areaId" id="areaId" type="hidden" value="" style=""/>
    <input name="areaName" id="areaName" type="text" value="" style="width:200px;"/></td>
    <td width="24%">&nbsp;</td>
  </tr>
  <tr>
    <td class="txtAllign">User id : </td>
    <td><input name="userId" id="userId" type="text" value="" style="width:200px;"/></td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
  </tr>
  <tr>
    <td class="txtAllign">User pass : </td>
    <td><input name="userPass" id="userPass" type="text" value="" style="width:200px;"/></td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
  </tr>
  <tr>
    <td class="txtAllign">Status : </td>
    <td>
    <select name="status" id="status" onChange="getStatusDetails(this);">
      <option value="S">Stop user</option>
      <option value="N">New user</option>
      <option value="R">Replace user</option>
    </select>    </td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
  </tr>
  <tr>
    <td class="txtAllign" id="details_select">Stop Date</td>
    <td> <input name="statusWiseDate" id="statusWiseDate" type="text" placeholder="mm/dd/yyyy" required /></td>
    <td> </td>
    <td class="txtAllign">Previous name :</td>
     <td><span><input name="previousId" id="previousId" type="text" value="" style="width:50px;" placeholder="id" disabled="true"/>&nbsp;</span>
   <span><input name="previousName" id="previousName" type="text" value="" style="width:100px;" placeholder="previous name" disabled="true"/></span></td>
    <td>&nbsp;</td>
  </tr>
  <tr>
    <td class="txtAllign">Instruction by : </td>
   <td><span><input name="instructionBy" id="instructionBy" type="text" value="" style="width:50px;" placeholder="id" onblur="showInstructionBy(this.id);" required />&nbsp;</span>
   <span><input name="instructionName" id="instructionName" type="text" value="" style="width:100px;" placeholder="name"/></span></td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
  </tr>
  <tr>
    <td class="txtAllign">Designation : </td>
    <td><input name="designation" id="designation" type="text" value="" style="width:200px;"/></td>
    <td></td>
    <td class="txtAllign">Instruction Date : </td>
    <td><input name="dateWithTime" id="dateWithTime" type="text" placeholder="mm/dd/yyyy" required/></td>
    <td>&nbsp;</td>
  </tr>
  <tr>
    <td class="txtAllign">Remarks : </td>
    <td colspan="4"><textarea name="remarks" id="remarks"></textarea></td>
    <td>&nbsp;</td>
  </tr>
  <tr>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
  </tr>
</table>
    <table style="text-align:center; padding-left: 70px;">
    <tr >
         <td><input name="" type="submit" value="save" /></td>
         <td><input name="" type="reset" value="clear"/></td>
         <td><input name="" type="button" value="Exit" onclick="showExit();"/></td>
         <td>
            <a href="#mydiv" rel="facebox"><img src="Script//reportView.png"/></a>
         </td>
      </tr>
    </table>
    </div>
    </form>

Monday, June 8, 2015

json value return and show in success function


struts configure:
<struts>

 <package name="web"  extends="jasperreports-default, struts-default, json-default" namespace="/">
      <action name="*Gsn" class="com.drug.billing.userblock.action.GsnAction" method="{1}">
            <result type="json"></result>
      </action>
    </package>

</struts>

GsnAction.java ::
    private ExecutiveInfo userBlockInfo =new ExecutiveInfo();
    public String userValue(){//use json

        System.out.println("select ist blur user data :");
        UserBlockDao userBlockDao = new UserBlockDao();
        userBlockInfo = userBlockDao.getUserBlockInfoByRegById(regById);

        return Action.SUCCESS;

    }

need jar : gson-2.2.4.jar


<script type="text/javascript">
     function showUserValue(id){
        // alert("kaniz ");
         var regById = document.getElementById(id).value;
        // alert(regById);

        var ajaxURL = "userValueGsn.do?regById="+regById;

        $.ajax({
            async:false,
            url : ajaxURL,
            dataType:'json',
            success : function(result) {
                if(result.userBlockInfo!=null) {
                //alert("kf"+result.userBlockInfo.userId);
                 $("#name").val(result.userBlockInfo.userId);

                 $("#userId").val(result.userBlockInfo.userId);
                 $("#userPass").val(result.userBlockInfo.userPass);
                 $("#areaName").val(result.userBlockInfo.areaName);

                  $("#areaExecId").val(result.userBlockInfo.areaExecId);
                  $("#areaId").val(result.userBlockInfo.areaId);
                }
            },

        });
    }
</script>

Jasper font show as jar that put in Library folder


error type below without jasper font jar :



search ::  ( how to install new fonts in jasperreports )
 http://www.qualogy.sr/adding-fonts-to-jasper-reports-integration/
http://stackoverflow.com/questions/14831465/how-to-install-new-fonts-in-jasperreports



Adding fonts to Jasper Reports Integration

Read more at:
